Scissor lift tables raise materials to working height for assembly, packing and machine loading. Select the platform, lift range and installation method around the load and process.
| Capacity | 300–10,000 kg |
|---|---|
| Lift range | 500–4,600 mm options |

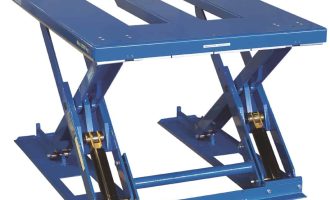

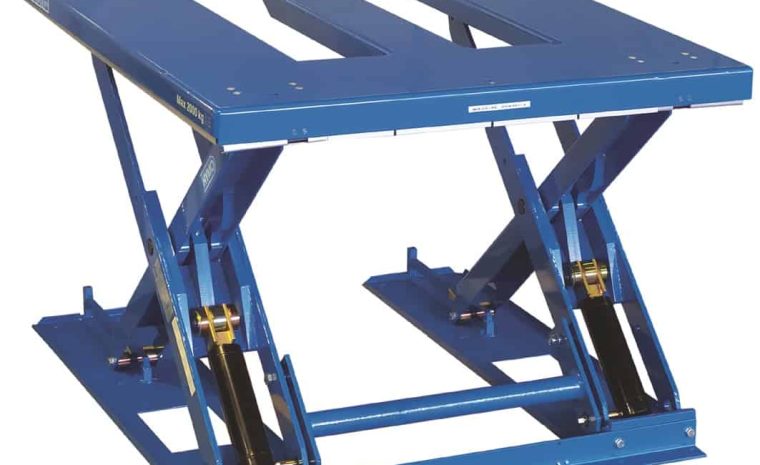

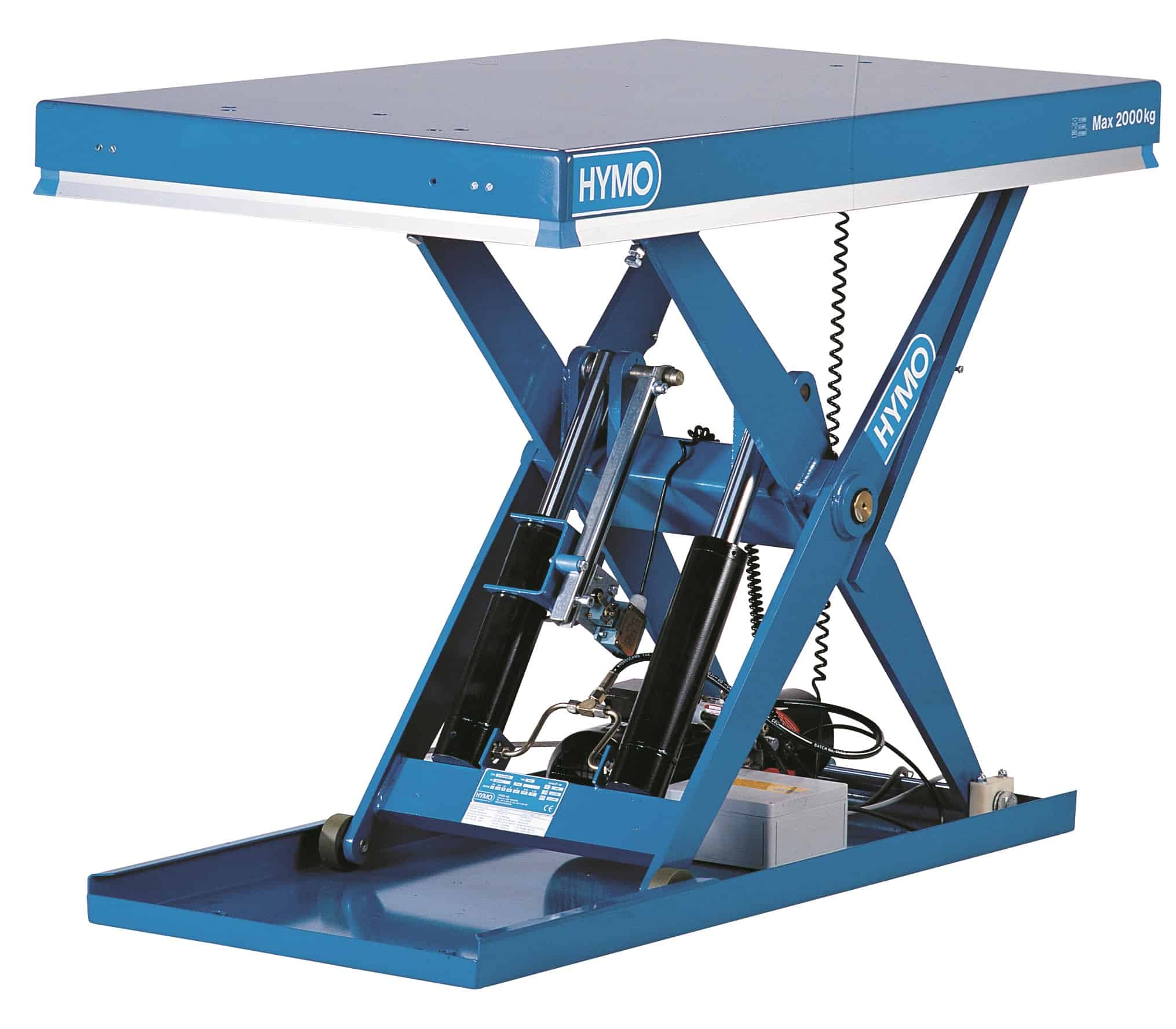

| Platforms | E-shaped or rectangular; standard and low-profile models |
| Pallets | Euro and UK formats |

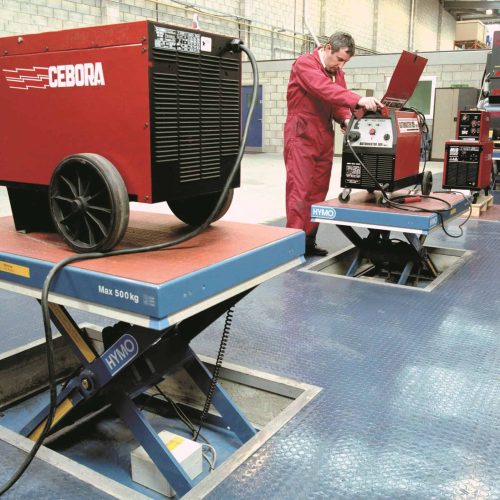

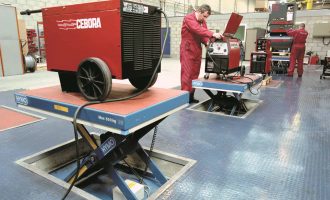

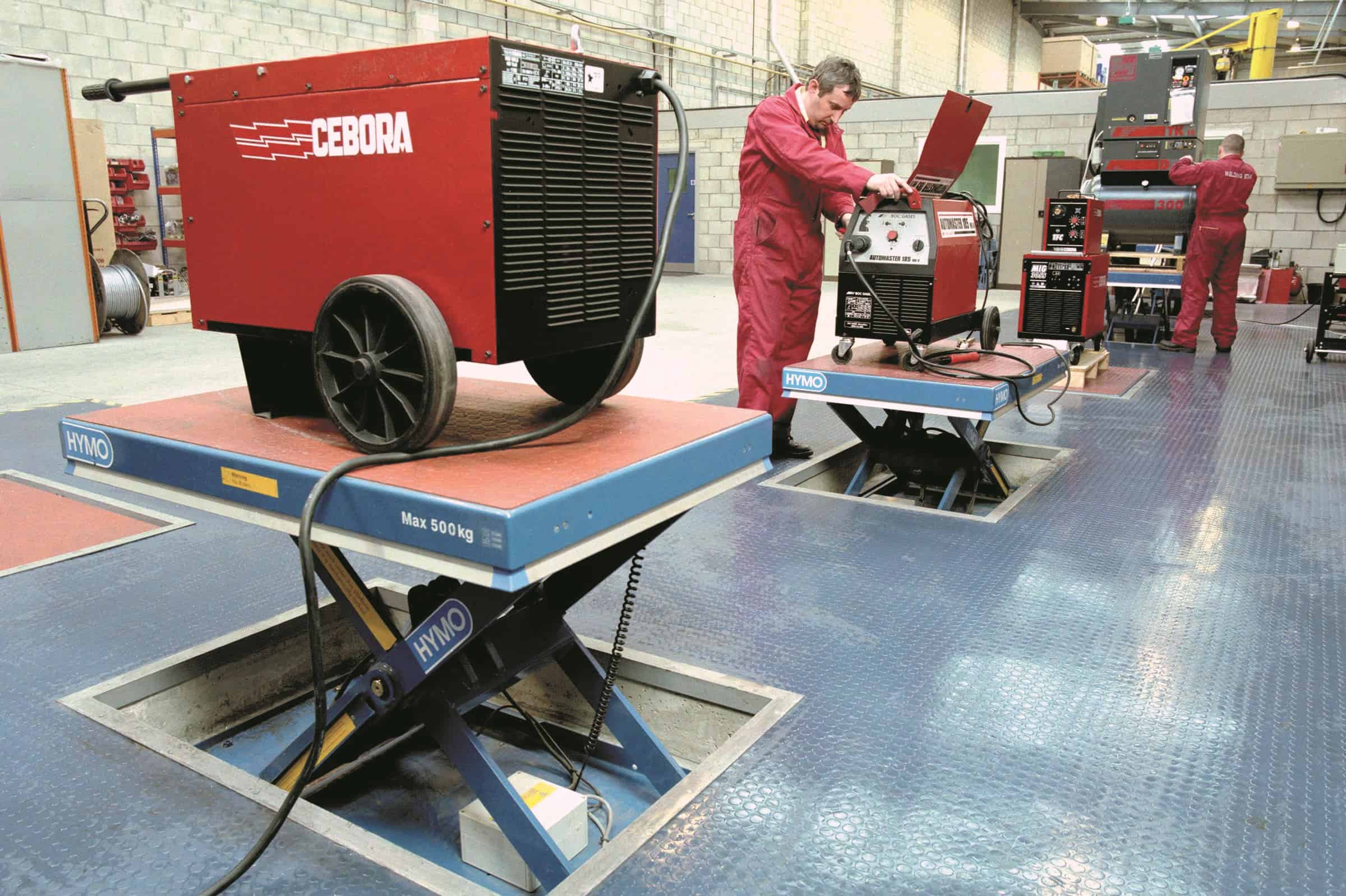

| Installation | Floor-mounted or pit-mounted |
| Power pack | External or integrated |
| Materials | Mild steel or stainless steel; galvanised options for specialist applications |
| Accessories | Turntables, ramps, roller conveyor tops and safety bellows |
| Certification | CE marked; EX-rated and ATEX-compliant models on request |

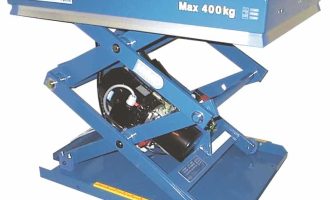

Applications include variable-height workstations, machine feeding, dock levelling and goods transfer between floor levels. Higher-lift models use double or triple scissor mechanisms.

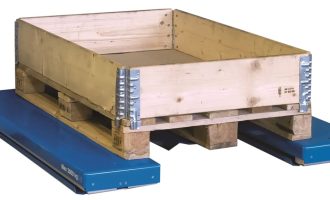

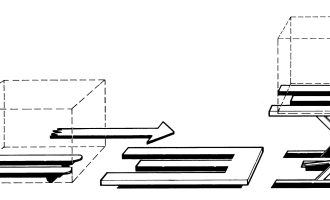

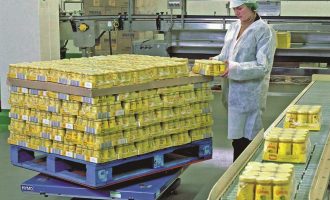

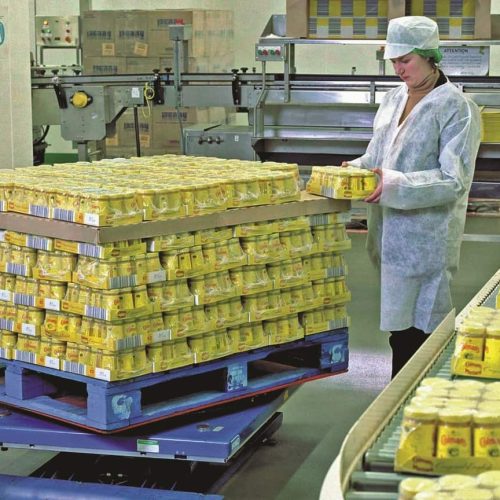

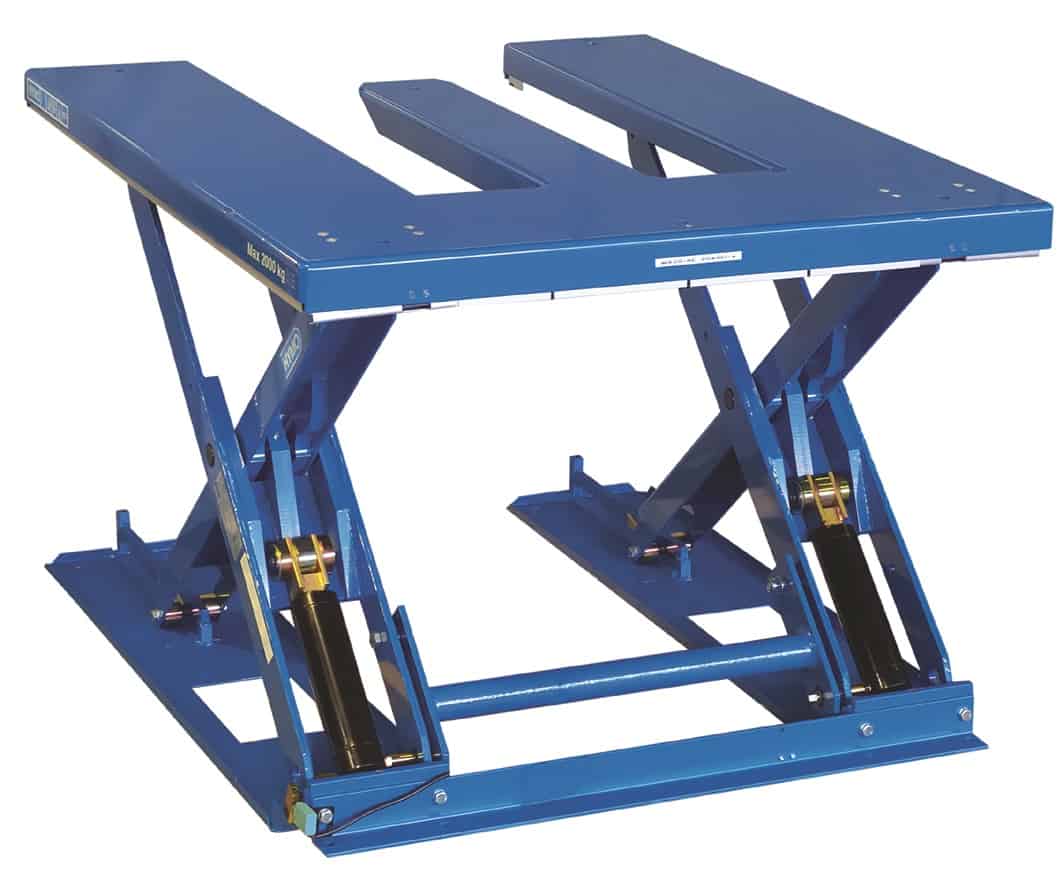

Turntables provide access around the load, while roller tops support transfer to conveyors. Low-profile U- or E-shaped configurations allow pallet-truck loading at floor level.
The range supports assembly, welding, automotive components, warehouse picking, retail loading bays, printing and packaging. Stainless steel or galvanised configurations are available for food and pharmaceutical handling.
