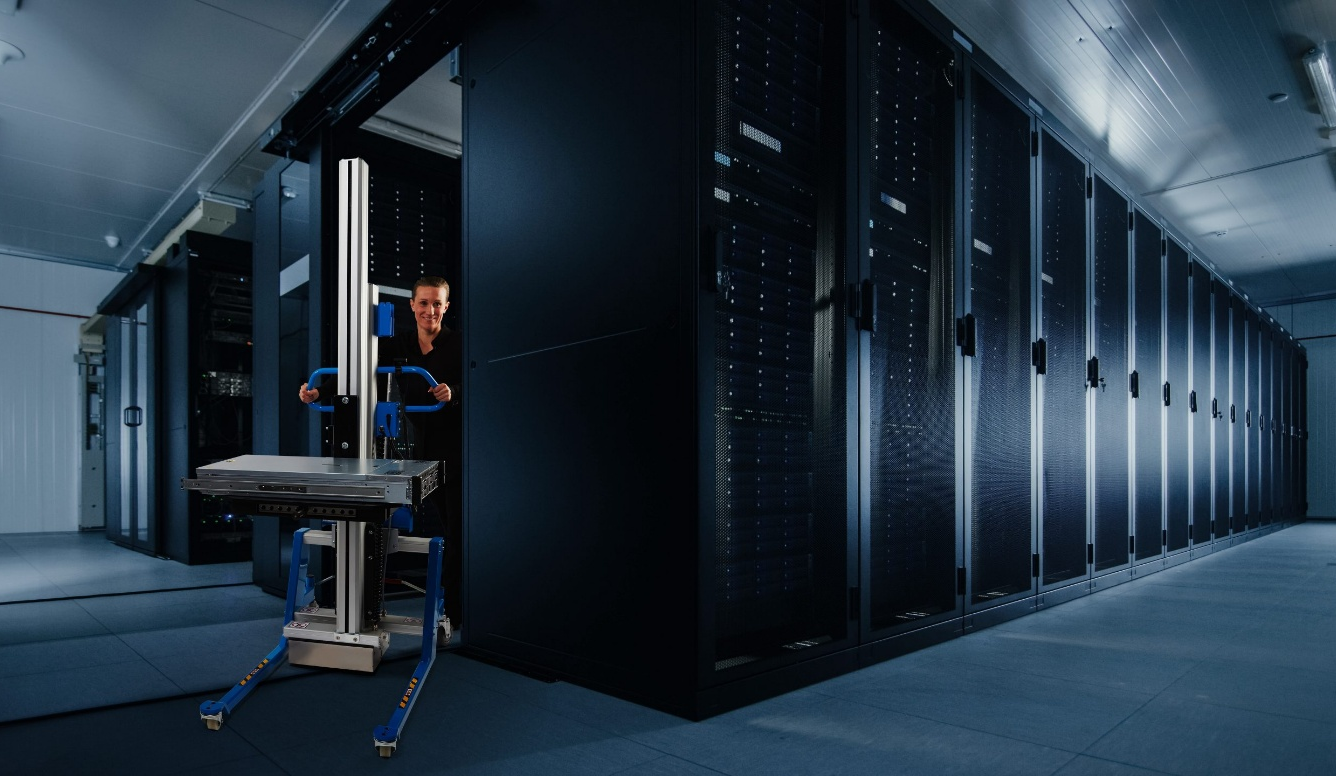

The LiftRite LDLR175 is a battery-operated data centre lifter for installing, removing and positioning servers weighing up to 175 kg. Its two-stage telescopic mast provides a platform height range of 80–2,300 mm.
The aluminium platform telescopes 155 mm in either direction to help align equipment at the rack. Dual-speed hand controls offer slow and standard lifting, with height-adjustable handles for the operator.
Fixed front wheels and extra-wide rear triple swivel castors support manoeuvring, with a central brake and rear directional lock. The complete power pack can be exchanged without tools for shift operation.
A laptop holder, tool tray and charger holder are supplied with the specified lifter.
| Lifting capacity | 175 kg |
|---|---|
| Platform height | 80–2,300 mm |
| Mast | Two-stage telescopic |
| Lifting mechanism | Integrated spindle drive |
| Platform | Aluminium single flat platform |
| Platform travel | 155 mm in either direction |
| Lift controls | Slow and standard speed |
| Power pack | Tool-free removal and exchange |
A slipping clutch disengages when the load is lowered onto an obstacle. On contact with an overhead obstacle, the upper safety switch reduces lifting speed to 10% and sounds a buzzer.
Electrical shutdown helps prevent battery over-discharge, while the automatic single-phase charger protects against overcharging.
Model S60226-02 is covered by UL certification to UL 2344 for material lifts. UL certification applies to units bearing the UL Mark.
CE conformity is documented under the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU.
