Key figures for Lift&Drive DC09 U42, presented for quick review.
| Capacity | Lift speed | Unit weight | Overall height | Length | Width |
|---|---|---|---|---|---|
| 90 kg | 132 mm/s | 65 kg | 2376 mm / 42U | 816 mm | 550 mm |
See the detailed product information and specification documents below for full configuration details.

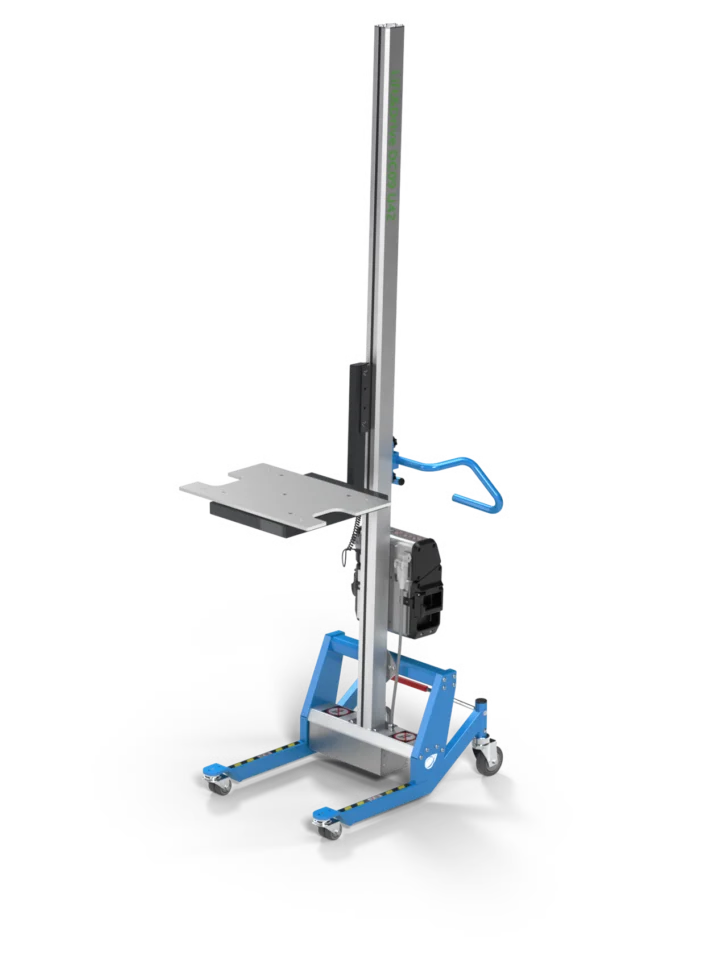

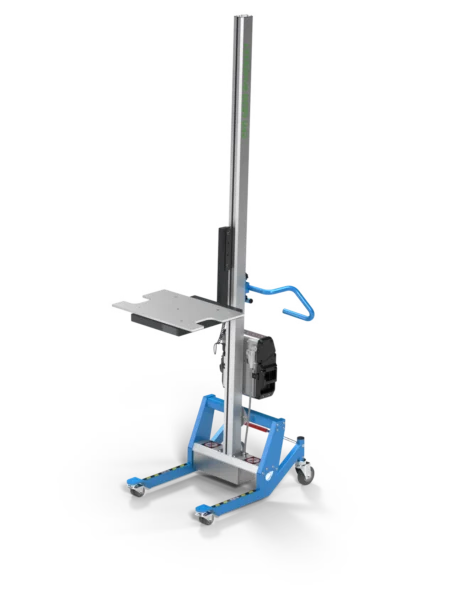

The Lift&Drive DC09 U42 handles servers and batteries up to 90 kg across an approximate 1U–42U working range. Its compact dimensions suit routine installation and maintenance in narrow aisles.
Four swivelling wheels with low rolling resistance support manoeuvring, while electric lifting provides controlled positioning. PRX control uses a removable Ergoswap battery that can be charged outside the data hall.
DC09 U42 dimensions and performance.
| Maximum load | 90 kg |
|---|---|
| Working range | Approximately 1U–42U |
| Maximum lift speed | 132 mm/s |
| Minimum weight | 65 kg |
| Height | 2,376 mm |
| Length | 816 mm |
| Width | 550 mm |
