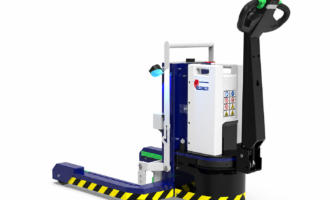

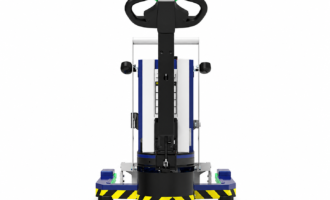

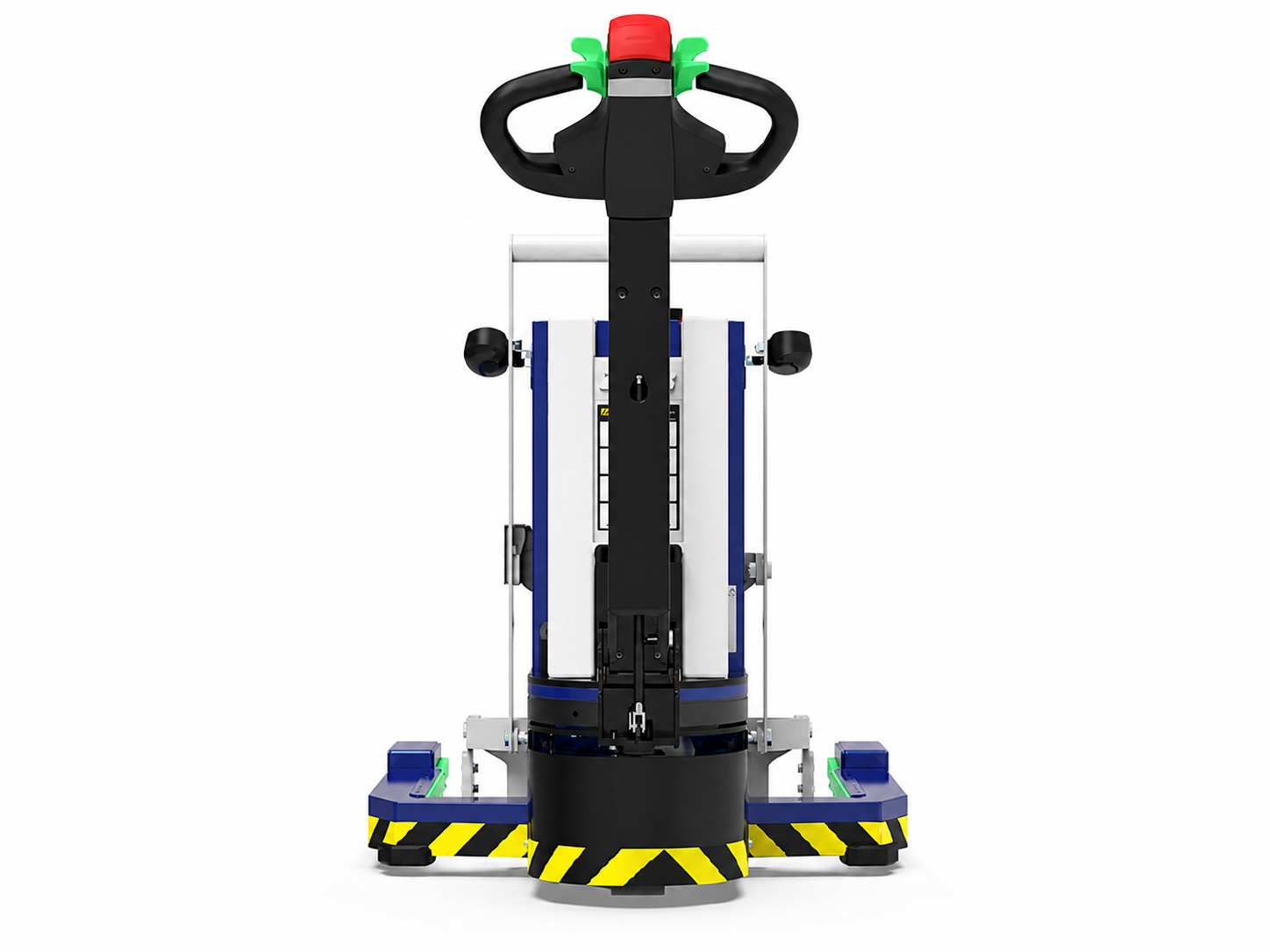

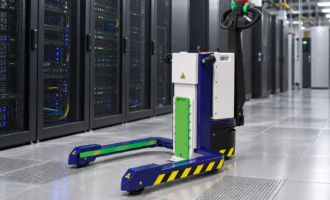

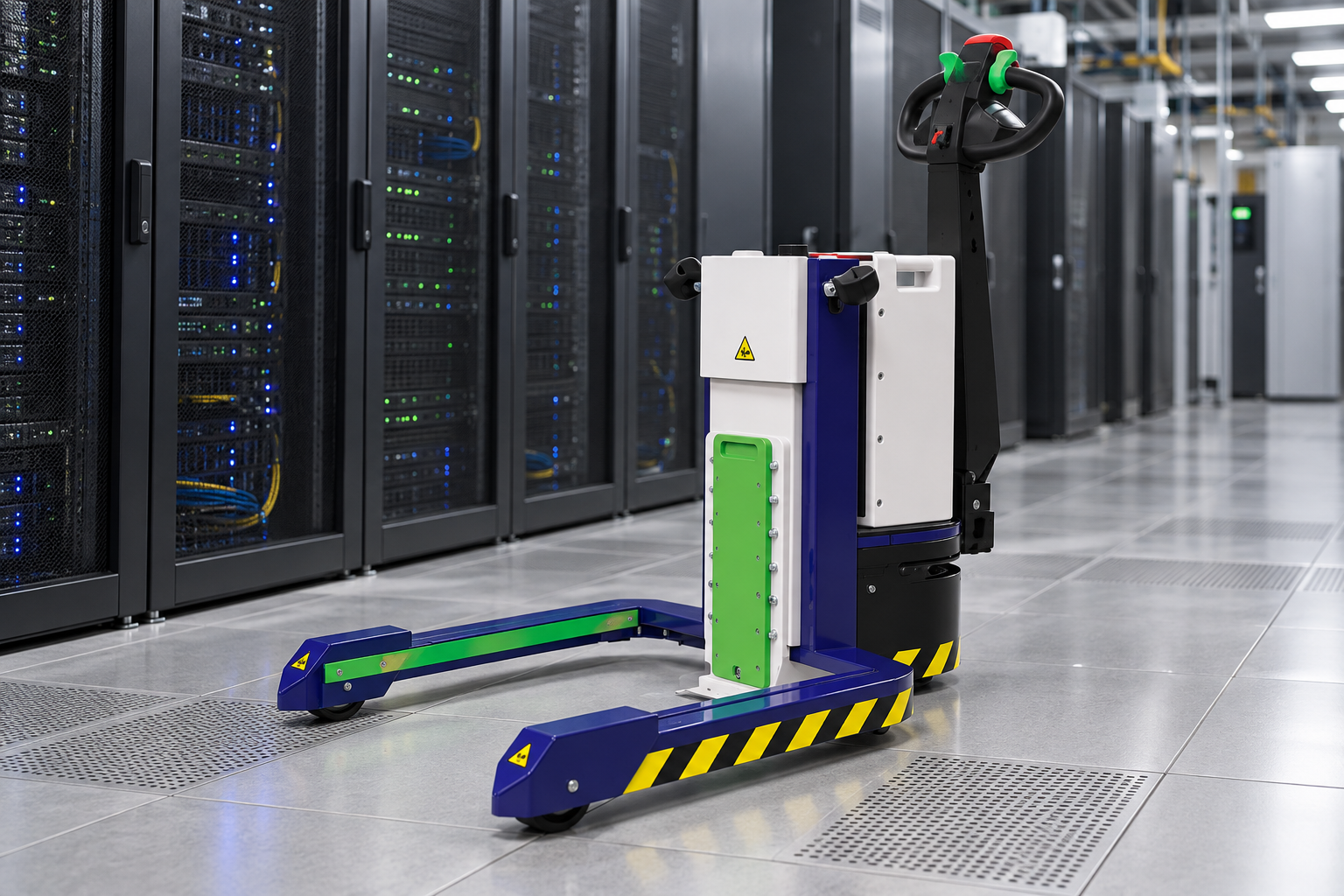

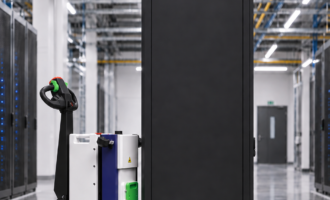

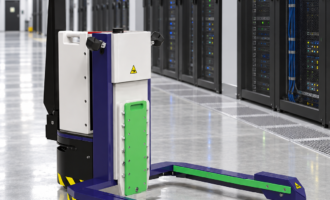

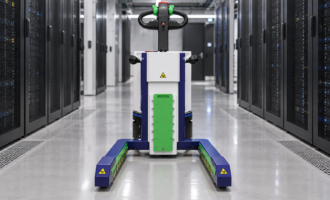

The Server Cabinet Tug is a powered handling solution for moving complete server cabinets safely and with controlled force. Designed for data-centre environments, it allows one operator to connect to a compatible cabinet or transport frame, move the load through confined aisles and position it accurately at its destination.

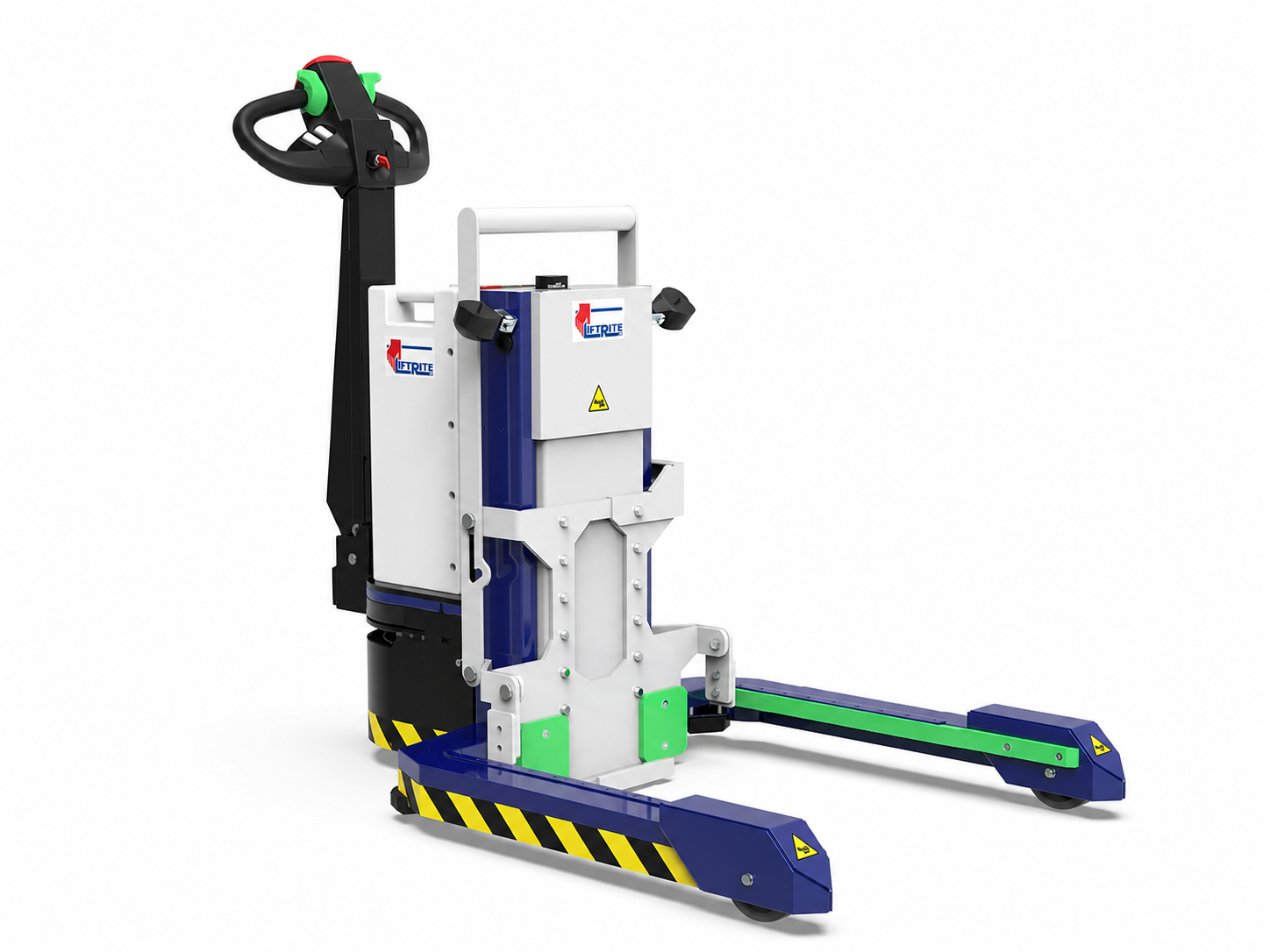

The electrically driven unit combines powered travel with an integrated lifting hitch. The hitch is lowered to the cabinet connection point, raised under push-button control and secured by a locking pin. Indicator lights confirm that the connection and lock are correctly engaged before movement.
Suitable for planned server-cabinet moves, data-hall reconfiguration, maintenance projects and positioning complete rack assemblies on compatible transport frames. LiftRite can review the cabinet, connection point, floor conditions, route and required capacity before specifying the final arrangement.
| Machine weight | 282 kg including batteries |
|---|---|
| Maximum towing capacity | 2,440 kg on a flat industrial floor with a compatible trolley |
| Maximum towing force at hook | 1,700 N |
| Hitch lifting capacity | 100 kg |
| Maximum travel speed | 1.7 km/h pushing; 3 km/h towing |
| Slope performance | Up to 3° with load for a maximum distance of 20 m |
| Power | 24 V electric drive with AGM traction batteries and external high-frequency charger |
| Wheels | Polyurethane motor wheel and high-friction, non-marking ESD rubber front wheels |
Capacity depends on the cabinet transport frame, connection arrangement, route and floor conditions. LiftRite will confirm suitability for each application.
