Key figures for Lift&Drive DC15 U60, presented for quick review.
| Capacity | Lift speed | Unit weight | Overall height | Length | Width |
|---|---|---|---|---|---|
| 150 kg | 65 mm/s | 118 kg | 1969–3229 mm / up to 60U | 1209 mm | 648 mm |
See the detailed product information and specification documents below for full configuration details.

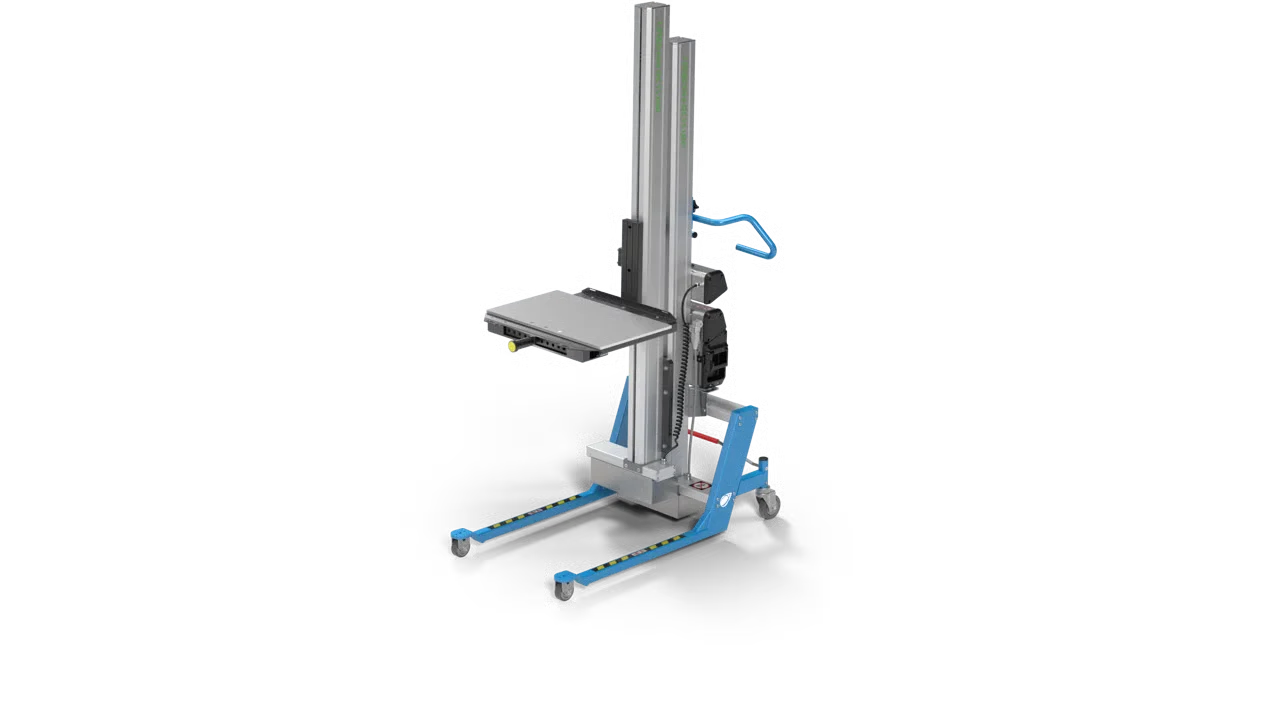

The Lift&Drive DC15 U60 lifts servers and batteries up to 150 kg, with a telescopic mast covering an approximate 1U–60U working range. The mast retracts for lower access points.
Four swivelling wheels, a rear-wheel brake and directional lock support positioning. Electric lift is controlled through PRX, with a removable Ergoswap battery for charging outside the data hall.
DC15 U60 dimensions and performance.
| Maximum load | 150 kg |
|---|---|
| Working range | Approximately 1U–60U |
| Maximum lift speed | 65 mm/s |
| Minimum weight | 118 kg |
| Minimum height | 1,969 mm |
| Maximum height | 3,229 mm |
| Maximum length | 1,209 mm |
| Minimum width | 648 mm |
