Key figures for 250 kg Server Lifter, presented for quick review.
| Capacity | Lift speed | Unit weight | Overall height | Length | Width |
|---|---|---|---|---|---|
| 250 kg | 78 mm/s | 180 kg | Up to 2300 mm | 1131 mm | 636 mm |
See the detailed product information and specification documents below for full configuration details.

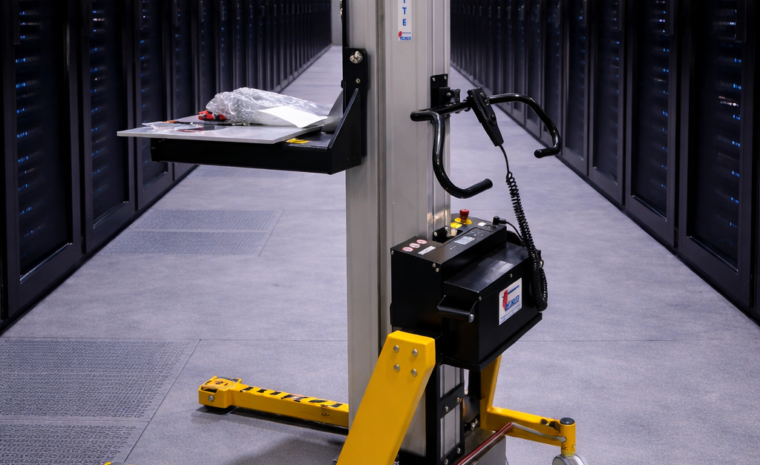

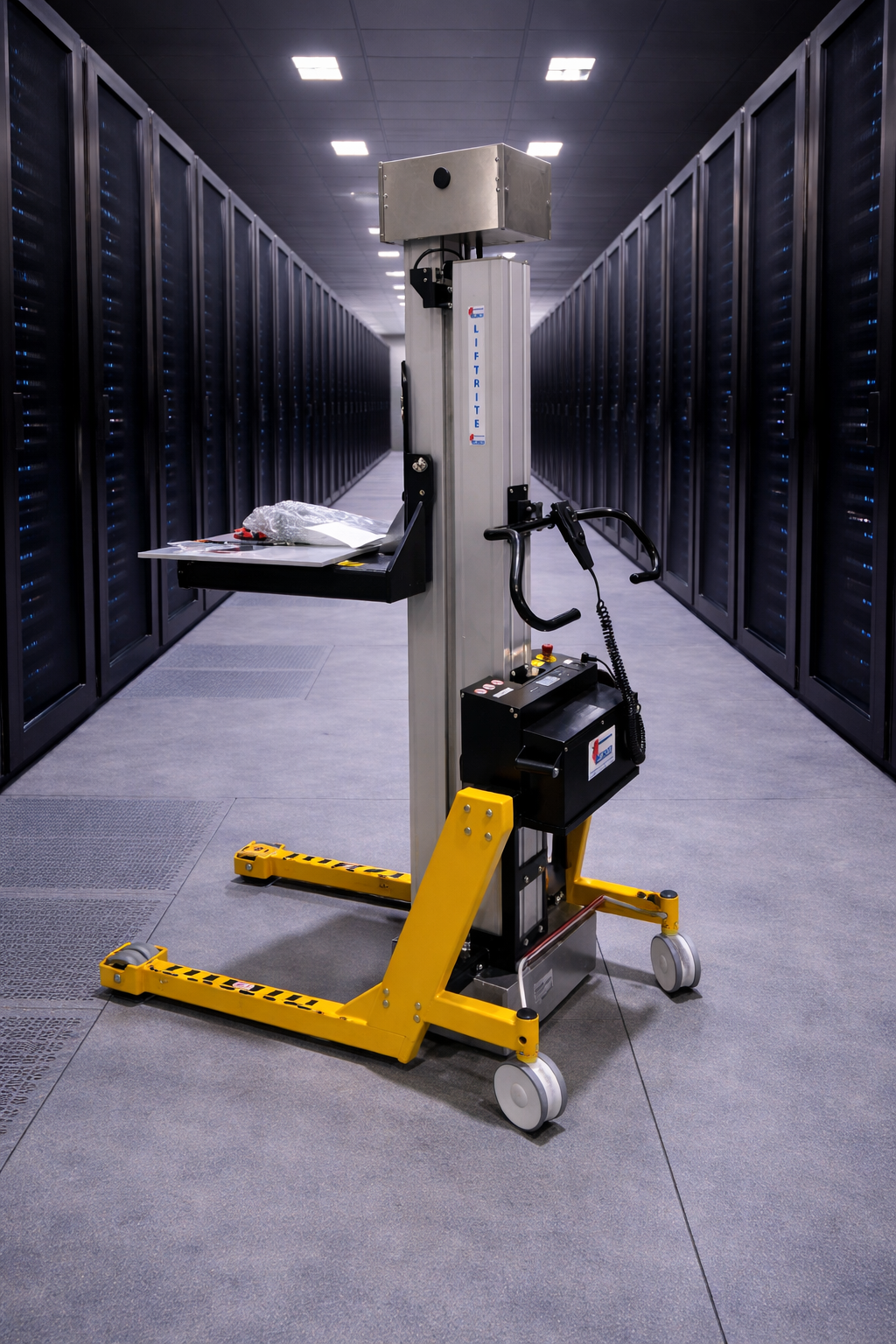

The 250 kg server lifter raises and positions servers, UPS systems, battery modules and switches during installation or maintenance. Its compact footprint suits narrow data-centre aisles.
Stepless lift control and electric side shift allow final alignment at the rack. The in-line mast provides a clear view of the load, with keyless PIN-code start and stop.
Lifting individual servers? This lifter positions equipment inside a rack. To move a complete cabinet across the floor, see our server rack movers and tugs.
For server and battery handling.
| Maximum load | 250 kg |
|---|---|
| Maximum lift speed | 78 mm/s |
| Minimum weight | 180 kg |
| Maximum height | 2,300 mm |
| Maximum length | 1,131 mm |
| Minimum width | 636 mm |
| Side shift | Electric platform; 150 mm in each direction |
| Push-force test | 4.5 kg (44 N) starting force with a 260 kg test load |
| Certification | CE EU 2023/1230, UL 2344 (1323) and IEC 60204-1 |
Request a quote for 250 kg server lifter
Customer Case Euclyde Datacentre →
This lifter raises individual servers, battery modules and other rack-mounted equipment. For complete cabinets, choose equipment from our rack handling range.
Send the equipment weight and dimensions, required installation height, rack layout and narrowest aisle or doorway. We can then confirm the appropriate configuration.
Use the specification sheet above. Overall unit height is different from platform lift height; confirm the required working height and configuration with LiftRite.
